You can download four high-resolution JPG maps of Miner County in one ZIP file from this page. The maps place Howard near the center-east of the county, with Vilas to the west, Canova to the south, and Carthage in the northwest. They also show the city-to-city straight-line connections from Howard, the Redstone Creek and Rock Creek systems, the West Fork Vermillion River and Little Vermillion River, and an elevation range of about 398 to 548 meters that rises strongly toward the east.
The general map has a clear road grid, but the water network cuts across that grid in a very different pattern. Howard lies along the road labeled 34, Vilas is just west of it, and Canova sits near the southern part of the county. Carthage is farther northwest, while Cloverleaf Colony and Shannon Colony provide additional reference points in the north and east. The map is especially useful when road numbers are used to locate towns first and the blue stream lines are then followed through the same areas.
The west side contains several small lakes and shorter creeks, while the east has longer north-south river corridors. The elevation map reinforces that contrast. Much of the west is green and lower, then the terrain rises through the center into yellow and brown colors along the east and northeast. Narrower lower valleys remain where the major streams cut through the higher eastern ground.
Table of Contents

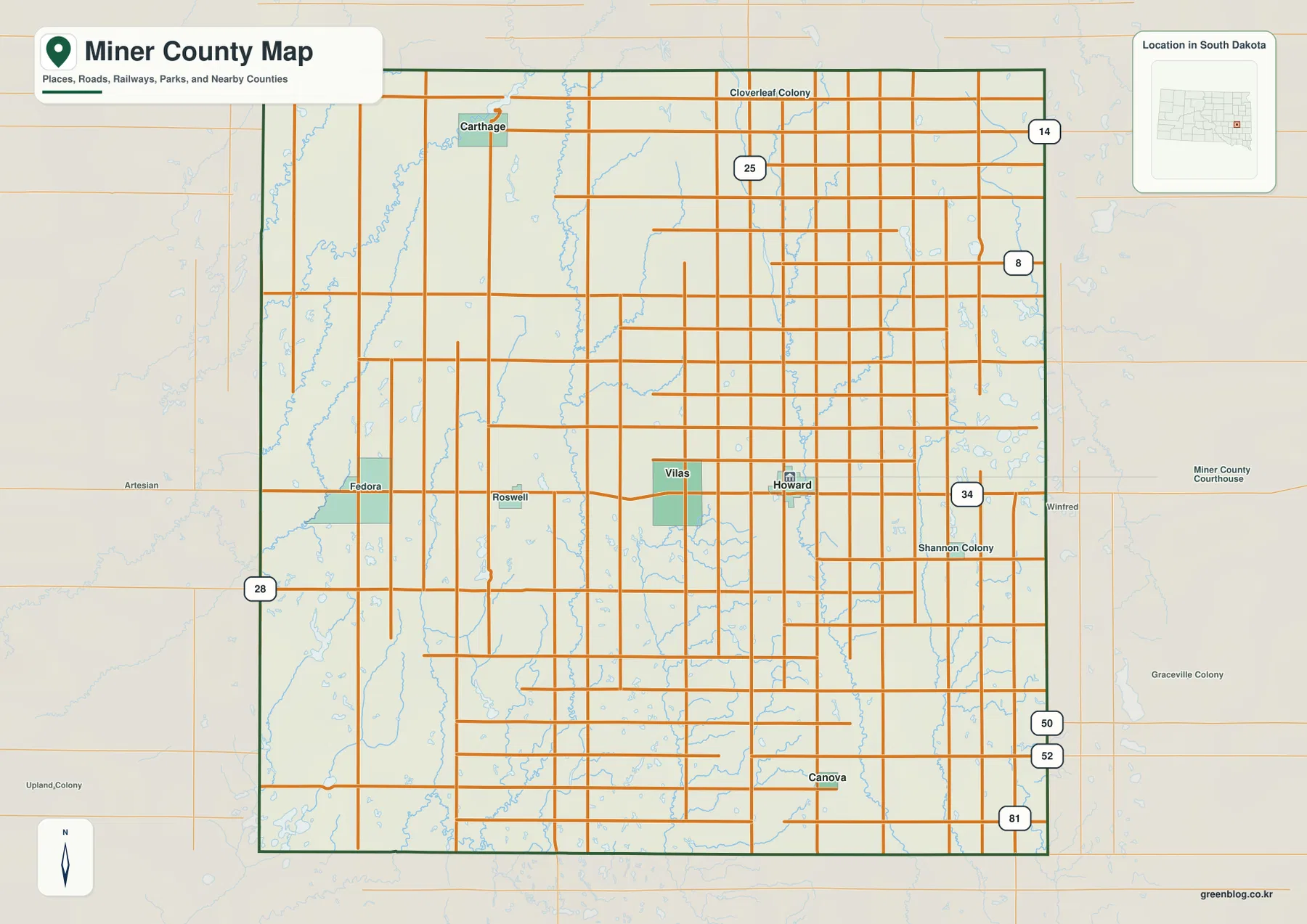

Find Howard on road 34, then use the road grid to move outward
Howard is the best starting point on the general county map because it lies close to the center of the mapped road network. The east-west route labeled 34 passes through the Howard area, and Vilas is located on the same broad corridor to the west. Canova is farther south, while Carthage is in the northwest. Once those four names are located, the rest of the county becomes easier to read because the major roads form long straight segments between them.
The northern part of the map includes Carthage and Cloverleaf Colony, with road 25 running north-south nearby. The northeast edge shows labels 14 and 8, while road 28 appears at the west boundary. Along the southeast edge, labels 50, 52, and 81 are stacked near the county line. These are useful geographic references, but they do not provide live traffic conditions, road closures, construction status, or travel times.
Blue waterways are visible throughout the road map, but they are not distributed evenly. Around Carthage and the west side, shorter streams and small water bodies appear between the road lines. East of Howard, the longer Vermillion River channels become more important. Carrying the same locations over to the water map makes it easier to see why the east and west halves of the county have different drainage shapes.

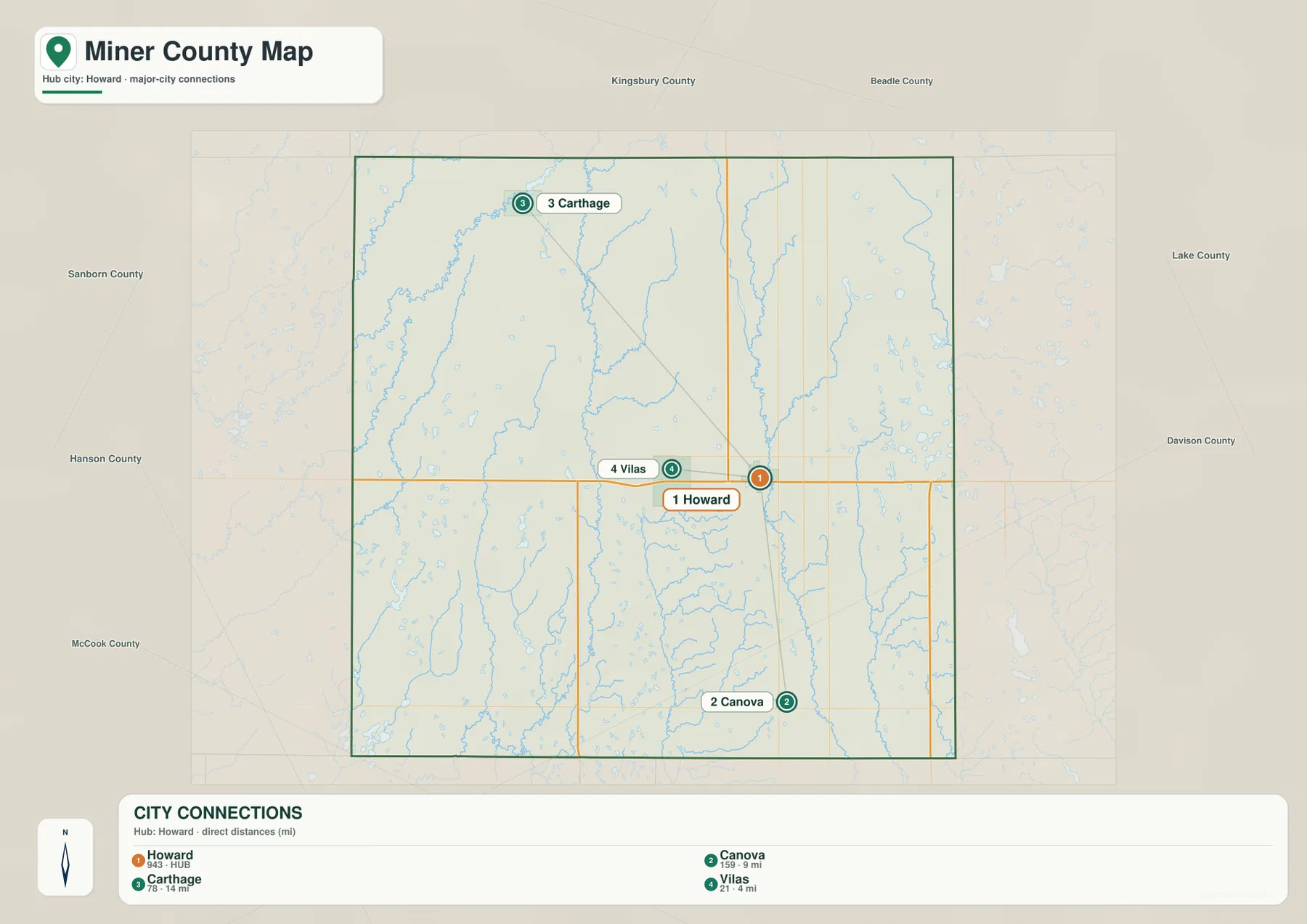

Howard connects to Vilas, Canova, and Carthage at three direct distances
The city-connections map uses Howard as the hub. Vilas is just to the west, Canova is south, and Carthage lies to the northwest. The three destinations point in different directions, which makes Howard a practical center for understanding the distribution of the county’s main mapped towns rather than treating them as one east-west chain.
The CITY CONNECTIONS legend lists Howard to Vilas at about 4 miles, Howard to Canova at about 9 miles, and Howard to Carthage at about 14 miles. These are straight-line distances measured directly between the mapped points. They are not driving distances along the road network, so actual travel mileage can be longer and will depend on the route chosen.
The CITY INDEX numbers are simply locator numbers for the labels. Howard is 1, Canova is 2, Carthage is 3, and Vilas is 4, but those numbers do not indicate population rank, travel priority, or distance. For actual route planning, use a current road-routing source rather than the index or the direct-distance labels.

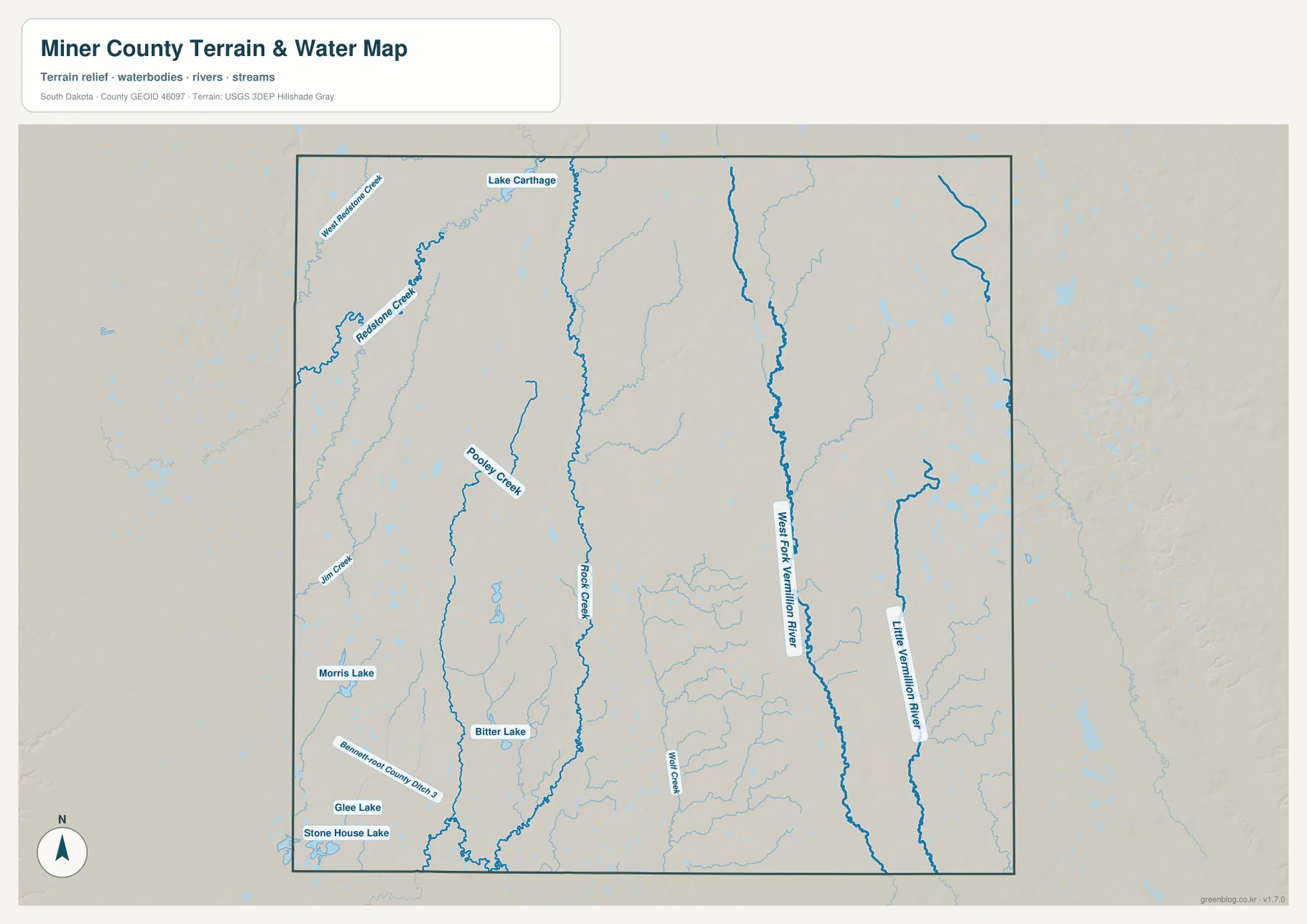

Western lakes and Rock Creek contrast with two long Vermillion River corridors
The terrain-and-water map has a noticeably different western and eastern half. In the northwest, West Redstone Creek and Redstone Creek bend near Carthage and Lake Carthage. Farther south are Jim Creek and Podley Creek, while Morris Lake, Bitter Lake, Glee Lake, and Stone House Lake are spread across the southwest and west-central interior. This side of the county is defined by separate lakes and shorter stream systems rather than one dominant river channel.
Rock Creek creates a long north-south line through the center-west. Farther east, the West Fork Vermillion River is a much larger north-south reference, and the Little Vermillion River follows another long corridor closer to the eastern side. Wolf Creek appears in the southern interior. Comparing these channels shows a clear progression from scattered western water bodies to longer, more continuous river valleys across the eastern half.
This water layer is intended as a geographic reference for stream and lake names and locations. It does not show current flow, depth, water quality, flood zones, or navigability, and a blue stream line should not be treated as a parcel or legal boundary. For current source hydrography, consult an authoritative dataset such as USGS National Hydrography.

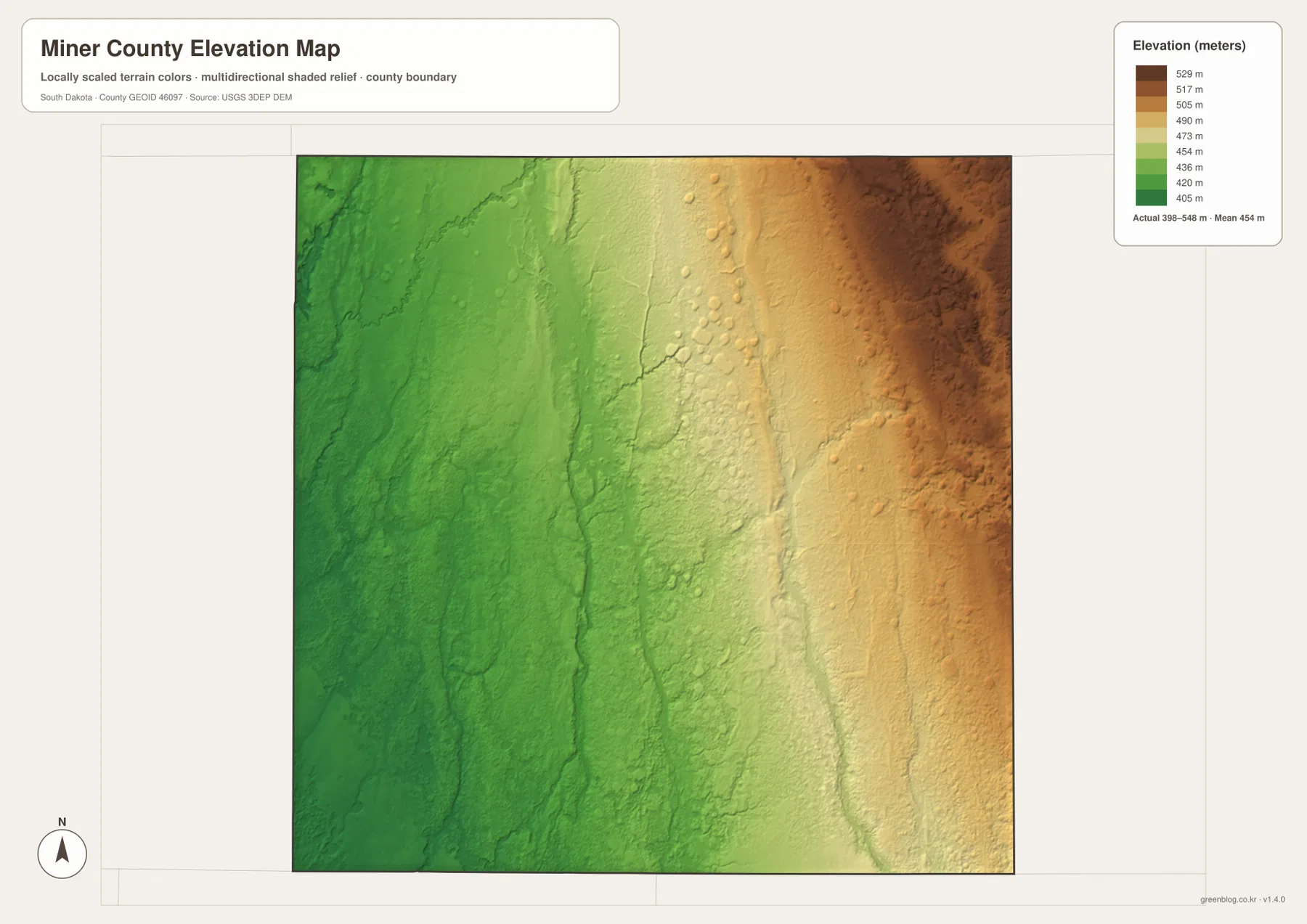

Elevation rises from roughly 398 m in the west to high ground along the east
The elevation legend reports an actual county range of about 398 to 548 meters with a mean near 454 meters. Broad green colors cover much of the west, indicating lower terrain. Moving east, the map shifts through lighter green and yellow into brown. The strongest high ground is concentrated along the eastern and northeastern side of the county, creating a clear west-to-east rise of roughly 150 meters between the listed minimum and maximum.
The main stream valleys remain lower than the uplands around them. The West Fork Vermillion River and Little Vermillion River form narrow green corridors through the higher eastern terrain, while Rock Creek creates another lower north-south valley closer to the center. The elevation pattern therefore is not a simple uninterrupted slope. Higher ground is cut by several long drainage corridors, and those lower strips line up closely with the waterways on the terrain map.
The elevation surface is designed for county-scale comparison rather than site measurement. It cannot provide an exact elevation for a farm corner, road point, building site, or engineering location from color alone. Use official DEM products such as the USGS 3D Elevation Program or an appropriate survey when a precise elevation is required.
Use Carthage and Canova to compare the northwest and south
Carthage is a useful reference for the northwest. On the general map it sits near the upper-left part of the county, and on the water map it lies close to Lake Carthage and the Redstone Creek system. Moving east from Carthage on the elevation map leads from lower western terrain toward progressively higher ground. It is a good place to see the transition from western lakes and short creeks to the longer north-south channels farther east.
Canova provides a southern reference. The city map places it about 9 straight-line miles south of Howard. On the water map, the southern interior is influenced by the West Fork Vermillion River and nearby tributaries, while the Little Vermillion River lies farther east. The elevation map shows those stream corridors cutting through terrain that generally becomes higher toward the east. Checking Canova across the four maps connects settlement position, water, and relief without treating any one layer as a complete picture by itself.
The WebP images in the article are optimized for screen viewing. The download archive contains the original JPG files for the general county map, city-connections map, terrain-and-water map, and elevation map. Each JPG is 3638 × 2572 pixels, making the originals more suitable for A3 printing, presentations, classroom materials, and closer inspection of labels.
Frequently Asked Questions
Are the 4, 9, and 14 mile labels from Howard driving distances?
No. The city-connections map identifies them as straight-line distances from Howard to Vilas, Canova, and Carthage. Actual road mileage can be longer because travel follows the road network rather than a direct line.
Which map best shows the West Fork Vermillion River and Little Vermillion River?
The terrain-and-water map is the clearest choice. Both long river corridors are labeled in the eastern half, while Rock Creek, Redstone Creek, and several western lakes provide additional reference points.
Can the 398–548 m range be used as an exact property elevation?
No. Those figures describe the county-wide elevation range, and the colored surface is intended for broad terrain comparison. Use official DEM or survey data when an exact elevation is needed at a specific point.
Map File Information
The ZIP contains the original high-resolution JPG files for the Miner County general map, city-connections map, terrain and water map, and elevation map.
- Included Files: 4 JPG maps
- Printable Size: 3638 × 2572 px each
