Houghton County occupies a large section of Michigan’s western Upper Peninsula and the Keweenaw Peninsula, combining the Houghton–Hancock urban area around Portage Lake with the northern Calumet–Laurium–Lake Linden corridor and a long forested interior extending south. Waterways divide the northern settlements, while broad uplands and deeply cut river valleys dominate much of the western and southern county.
This page uses the supplied general county, city-distribution, terrain-and-water, and elevation maps to explain those differences. High-resolution JPG originals are available together in a ZIP download for printing, classroom materials, presentations, and detailed local reference. Reading the maps together makes it easier to connect US-41 and M-26 with Portage Lake, Torch Lake, the river valleys, and the large elevation changes across the county.
The easiest orientation begins around Houghton and Hancock. US-41 continues north toward Calumet and Laurium, M-26 follows the eastern water side toward Lake Linden and Hubbell, and M-203 provides another route reference on the western side of the Houghton area. Farther south, M-38 and M-28 become more important as settlements thin and the county becomes increasingly rural.
Table of Contents
US-41 connects Houghton and Hancock with the northern Keweenaw communities

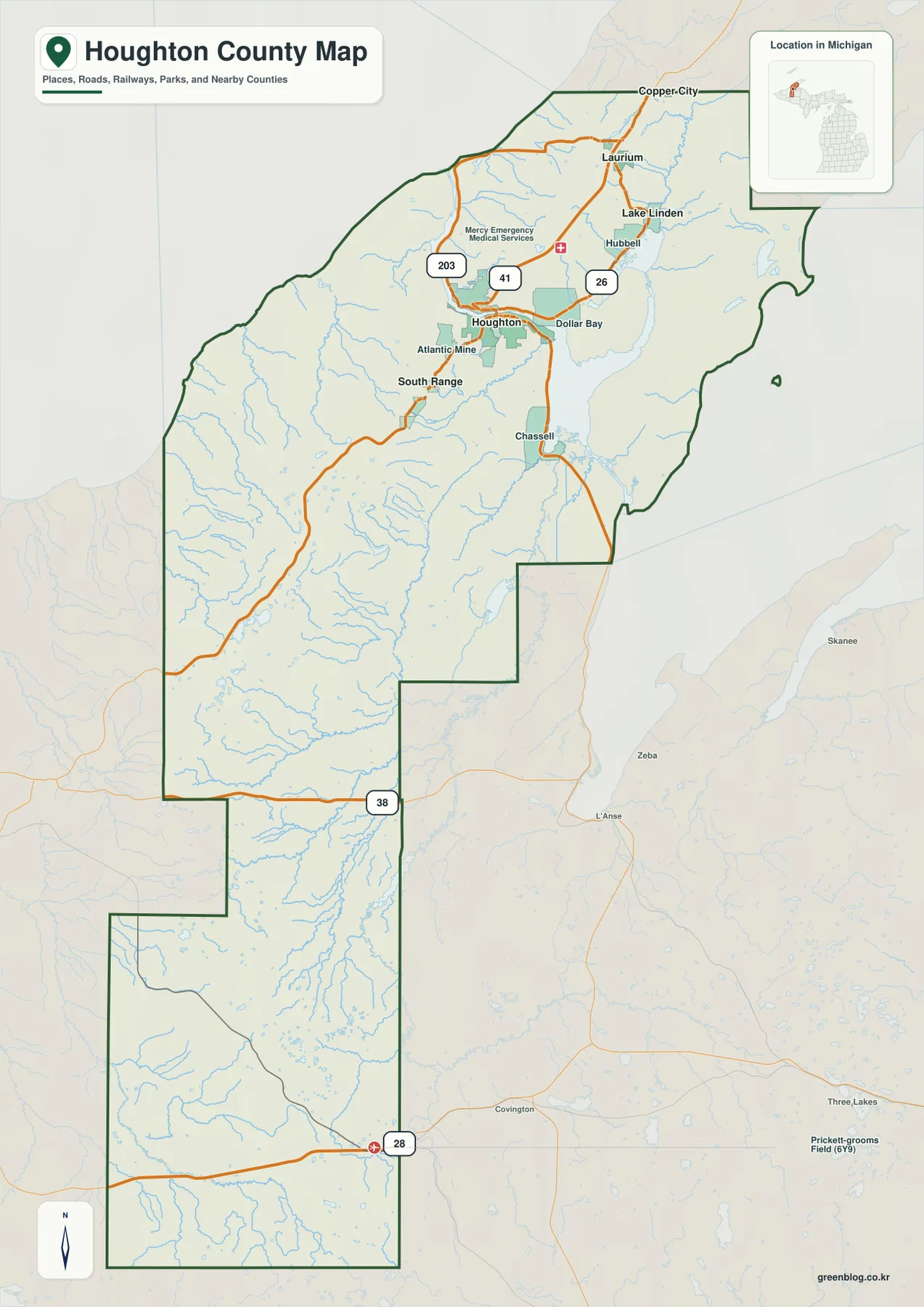

Houghton and Hancock form the strongest transportation and settlement concentration on the general county map. US-41 is the primary north-south road reference, while M-26 follows the eastern side toward Dollar Bay, Hubbell, and Lake Linden. M-203 provides another local route reference west and north of the Houghton area.
North of Houghton, Laurium and Calumet appear close together, with Copper City farther north. The county becomes narrower toward the Keweenaw County boundary, and roads follow the peninsula’s elongated shape. Lake Linden and Hubbell sit farther east near the water, creating a different route pattern from the US-41 interior corridor.
South of Houghton, Atlantic Mine and South Range provide local references before US-41 continues toward Chassell. Road density declines quickly beyond the urban area, while streams become more prominent across the map. The southern part of the county is therefore easier to understand when the road map is paired with the terrain-and-water view.
M-38 provides an east-west reference through the middle-to-southern county, and M-28 appears along the far southern corridor. The county boundary steps and bends several times in this area, with very few large settlements. Road numbers, river labels, and county edges become more useful than city names for orientation.
This is a regional reference map rather than a live navigation product. It does not show current traffic, construction, winter road conditions, or seasonal restrictions. Current driving routes and travel conditions should be checked with up-to-date Michigan transportation information or a live navigation service.
Six highlighted communities cluster around Houghton and the northern peninsula

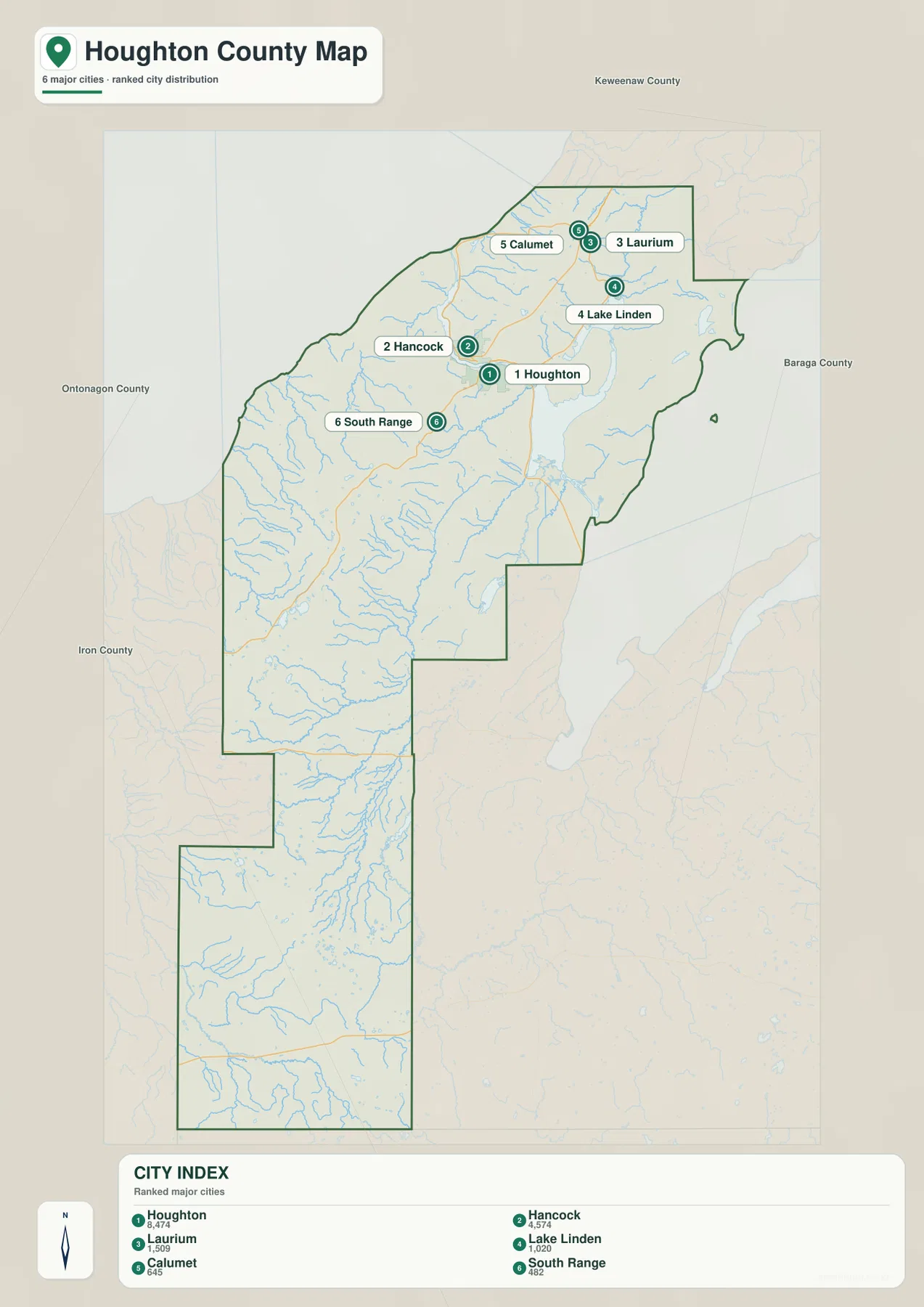

The city-distribution map highlights Houghton, Hancock, Laurium, Lake Linden, Calumet, and South Range while removing most road detail. Houghton and Hancock sit close together around the Portage Lake crossing, Laurium and Calumet are farther north, Lake Linden lies to their east near the water, and South Range stands apart southwest of Houghton. There are no connector lines or distance measurements, so this map should be used for relative position rather than travel distance.
The CITY INDEX lists reference values of 8,474 for Houghton, 4,574 for Hancock, 1,509 for Laurium, 1,020 for Lake Linden, 645 for Calumet, and 482 for South Range. These figures are best treated as ranking values used for the map rather than as the latest official population counts. Current population estimates should be checked in the relevant U.S. Census Bureau release.
Houghton is the largest highlighted community, with Hancock close across the Portage Lake waterway. The general map adds US-41, M-203, and the water crossing to this simple city relationship. The distribution map is useful for location, but practical travel between the two cities depends on the road and bridge network.
Laurium and Calumet form a northern pair, while Lake Linden occupies the eastern water side. These communities sit within the narrower part of the Keweenaw Peninsula, where shoreline, waterways, and ridge terrain shape the road pattern. Their relative positions make more sense when the city map is viewed beside the water and elevation maps.
South Range lies southwest of Houghton and is the only highlighted community well south of the northern cluster. Atlantic Mine, Chassell, Hubbell, Dollar Bay, and other names appear on the general map but not in the six-city ranking. Use the city view for the highlighted settlement pattern and the general map for the broader network.
Portage Lake, Torch Lake, and long river valleys organize the county

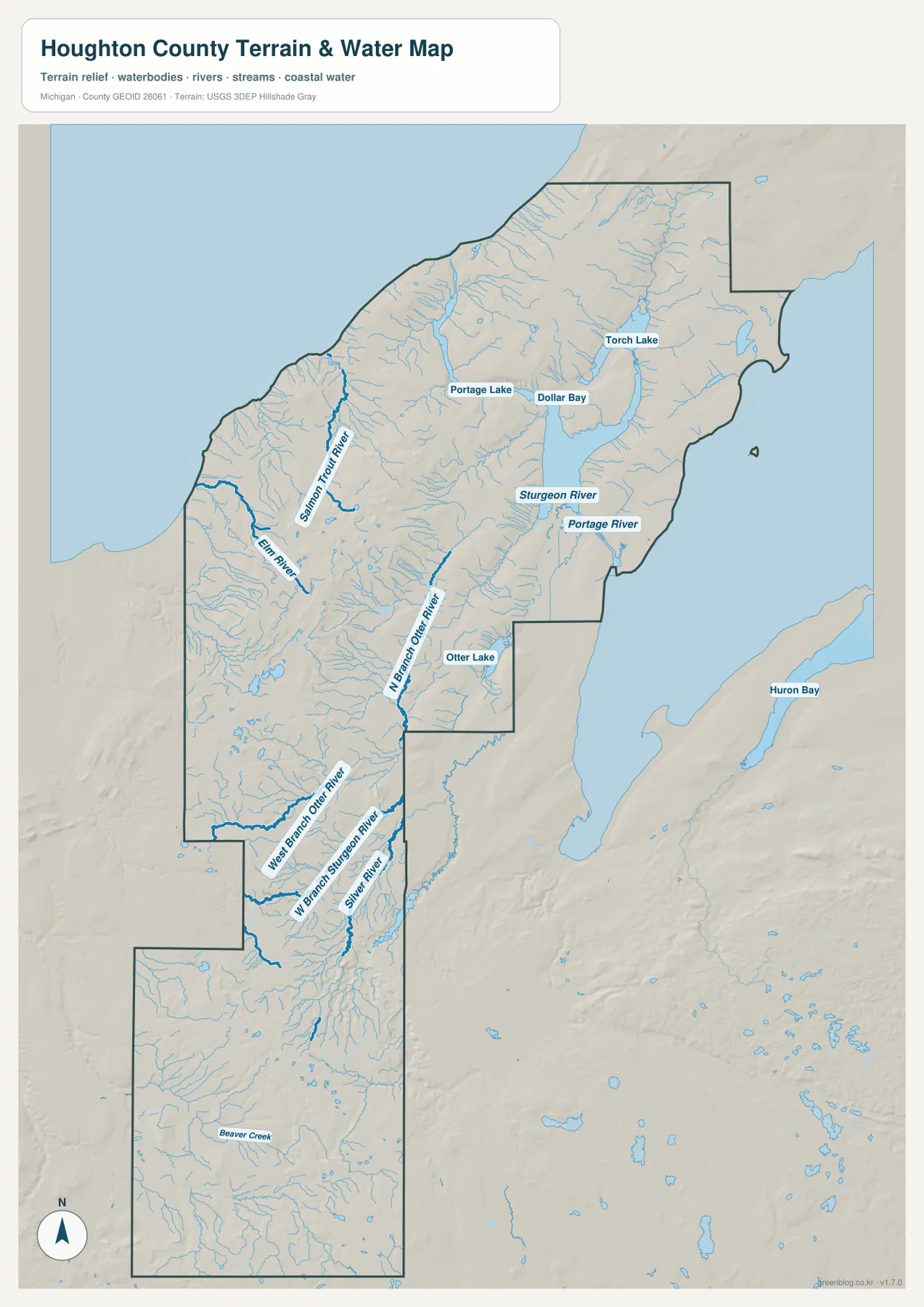

Portage Lake is the strongest water reference around the Houghton–Hancock area. Dollar Bay appears to the east, and Torch Lake extends farther north. These large waters help explain why the northern road network bends around channels and why settlements are divided between inland ridges and shoreline corridors.
Salmon Trout River and Elm River are prominent on the western side. Numerous shorter tributaries descend through the uplands toward the Lake Superior side, producing a dense network of valleys. The elevation map reinforces this pattern by showing green drainage corridors cutting through higher western terrain.
North Branch Otter River becomes one of the main water references in the central county, with Otter Lake nearby. Farther south, West Branch Otter River, West Branch Sturgeon River, Sturgeon River branches, and Silver River create a complicated inland drainage network. In this sparsely settled region, river names are often more useful orientation references than communities.
The eastern side includes Portage River and Sturgeon River channels near the broader water bodies, with Huron Bay visible beyond the county boundary. Low valleys are more extensive on this side than across some of the western uplands. Comparing the water and elevation maps makes the east-west contrast especially clear.
Beaver Creek and many smaller tributaries occupy the far southern section. This water map is a geographic reference, not a flood, navigation, depth, water-quality, or legal-access product. Boating, fishing, flood planning, and other regulated activities should use current Michigan and federal information in addition to this county-scale view.
Eastern waterways rise into western ridges and high southern terrain

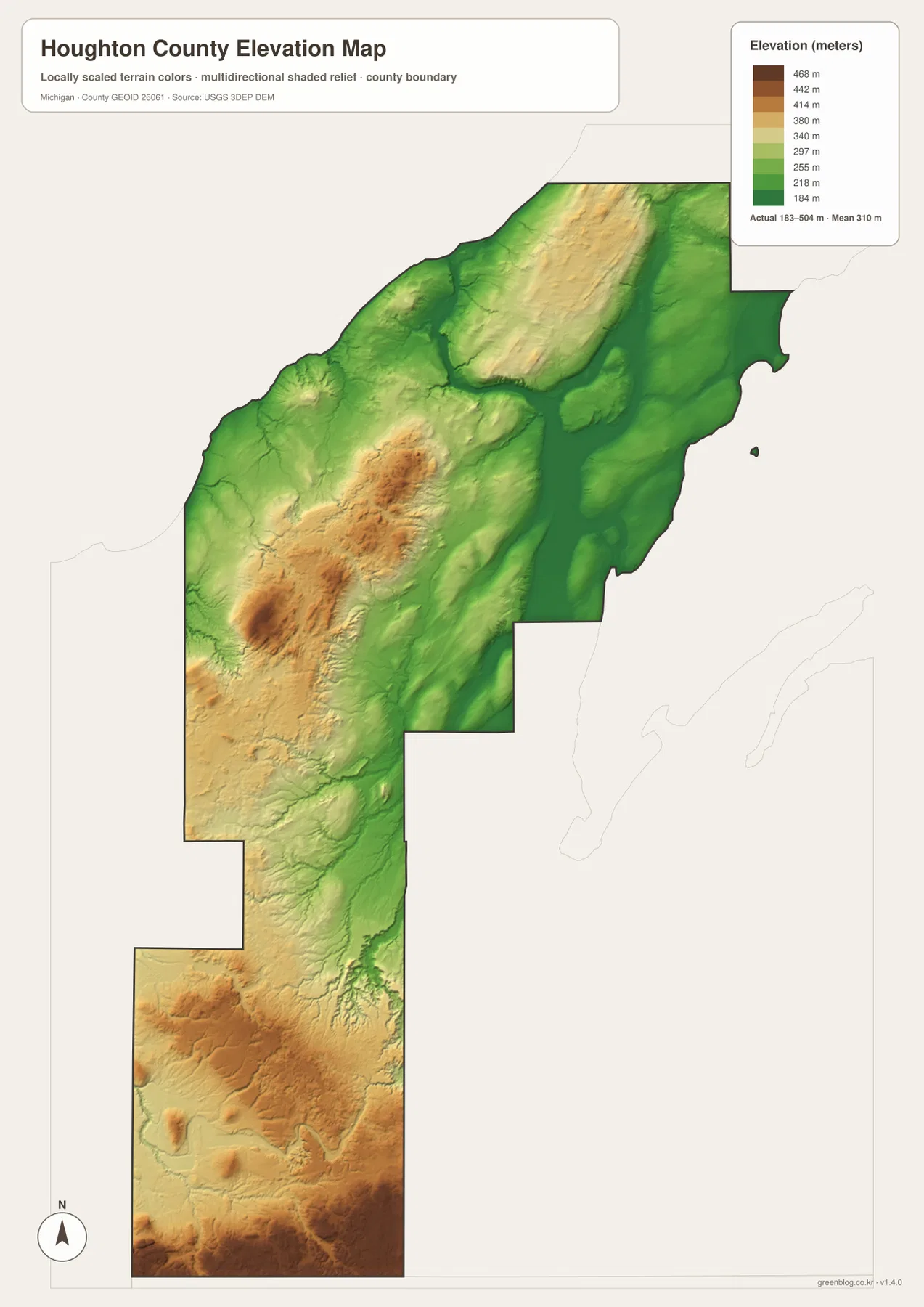

The elevation legend reports an actual range of about 183 to 504 meters with a mean of 310 meters. Dark green marks the lower parts of Houghton County, lighter green and yellow indicate intermediate terrain, and orange to brown identifies the higher ridges and uplands. The palette is locally scaled, so the same color on another county map should not be assumed to represent the same elevation.
The broadest low terrain follows Portage Lake and the eastern waterways, with green corridors also extending through major river valleys. Houghton and Hancock sit much lower than some of the strongest ridges to the west. Lake Linden and Hubbell likewise occupy a lower water-side setting.
A pronounced belt of orange and brown uplands occupies the west-central county. These ridges are broken by stream valleys rather than forming one continuous plateau. Salmon Trout River, Elm River, and the Otter River system cut lower paths through terrain that otherwise rises sharply above the eastern water corridors.
The northern peninsula also contains an interior ridge, with lower green terrain near the water on either side. Elevation can therefore change quickly between Calumet–Laurium and the Lake Linden side even over a relatively narrow part of the county.
The far southern county rises again into broad high terrain, with some mapped areas approaching 500 meters. Sturgeon River branches and other tributaries cut green valleys into those uplands. This county-scale elevation surface is useful for broad comparison but is not survey-grade or engineering-grade measurement. Exact parcel elevations, drainage design, construction, and slope calculations require authoritative detailed data such as the USGS 3D Elevation Program.
Houghton, Calumet, and the southern interior represent three different settings
Houghton and Hancock provide the best starting point. US-41 and M-203 organize the road network, Portage Lake separates and connects the urban area, and the elevation map shows a relatively low setting beside much higher western terrain. The city map also confirms that these are the two largest highlighted communities.
Calumet and Laurium represent the northern inland cluster, while Lake Linden sits farther east near the water. US-41 and M-26 give the road references, but Torch Lake and the ridge-to-water elevation change explain the geography more clearly than roads alone.
Chassell and the central county mark the transition from the Houghton urban area into the long rural interior. Settlement labels become sparse while North Branch Otter River, Otter Lake, and other drainage lines grow more important. This is where the county begins to read more like a river-and-ridge landscape than a city corridor.
The M-38 and M-28 sections farther south have very few large settlements and some of the county’s highest terrain. Dense tributary networks cut through the uplands, and Beaver Creek becomes a useful reference near the southern end. This setting is dramatically different from the Portage Lake urban area.
For practical use, the general map is best for roads and named places, the city map for relative settlement positions, the water map for Portage Lake, Torch Lake, and the river systems, and the elevation map for the low-waterway to high-upland contrast. Used together, the maps provide a fuller picture of Houghton County.
Choosing a Houghton County map and using the high-resolution files
Use the general county map when you need Houghton, Hancock, Calumet, Laurium, Lake Linden, US-41, M-26, and M-203 in one view. The city-distribution map is cleaner when the main question is where the six highlighted communities sit within the county. Choose the terrain-and-water map for Portage Lake, Torch Lake, Otter River, and Sturgeon River, and the elevation map when the contrast between eastern lowlands and western or southern uplands is the main subject.
The WebP images on this page are optimized for browser viewing. The ZIP below contains the original high-resolution JPG versions of the general county map, city-distribution map, terrain-and-water map, and elevation map. Those originals are better suited to printing, classroom handouts, presentations, and large displays where additional image detail is useful.
Frequently Asked Questions
Which map is best for finding Houghton, Hancock, and Calumet together?
Use the general county map. It shows US-41 and M-203 around Houghton and Hancock, the northern Calumet–Laurium area, and M-26 toward Lake Linden. The city-distribution map is also useful when you only need the relative positions of the highlighted communities.
Which map shows Portage Lake and Torch Lake?
Use the terrain-and-water map. It shows Portage Lake, Dollar Bay, Torch Lake, Salmon Trout River, Elm River, Otter River branches, Sturgeon River systems, and Otter Lake. It is a location reference and does not provide flood, depth, navigation, water-quality, or access information.
Where does Houghton County appear highest on the elevation map?
The strongest high terrain appears across the west-central ridges and the far southern interior, while Portage Lake and the eastern water corridors are generally lower. The legend reports an actual range of roughly 183 to 504 meters with a mean of 310 meters, but exact site elevations should be checked in authoritative elevation data.
Map File Information
The ZIP contains the high-resolution JPG originals for the Houghton County general map, city-distribution map, terrain-and-water map, and elevation map.
- Included Files: general county map, city-distribution map, terrain-and-water map, elevation map
- File Type: JPG
