Bibb County Alabama Land Cover Map: Forest Edges, River Wetlands and Roads

A look at Bibb County, Alabama, from above reveals extensive woodland interrupted by small farms, wetlands, and a few concentrated developed areas. Forest covers 64.42% of the county in the supplied 2025 summary, but the texture changes considerably near the south-central settlement cluster and along some eastern edges. These four land-cover maps make those contrasts easier to see.

You can compare a general land-cover map, a forest-and-farmland view, an impervious-surface map, and a 1985–2025 class-change map on this page. All four original JPG maps are provided together in a single downloadable ZIP. They work well for a classroom presentation, a county overview, or a comparison with neighboring areas.

Where the green landscape begins to break up

A countywide forest share of 64.42% tells only part of Bibb County’s story. Wetlands contribute 7.57%, agriculture 7.35%, shrubland 6.94%, and developed land 6.76% to the 2025 summary. A separate view lists grassland at 6.21% and open water at 0.53%. Together, these classes account for a landscape that is wooded overall, not one solid expanse of identical vegetation.

The western and southwestern sections appear heavily forested. Lighter patches become more frequent toward portions of the east and northeast, while red developed cover is concentrated around a south-central cluster. A smaller collection of built pixels appears near the northern edge. Seeing the patches in their actual positions matters because countywide percentages cannot tell you whether farmland is gathered in one place or scattered among trees.

Bibb County includes Centreville, Brent, West Blocton, and Woodstock, according to the county’s official information. None of those municipalities is labeled on these map images. The visible developed clusters are therefore useful orientation points, not proof of municipal boundaries. To identify an exact town street or parcel, consult a separate labeled base map rather than assigning a town name to a red patch by eye.

The full-color 2025 map: forest, wetlands, and small developed clusters

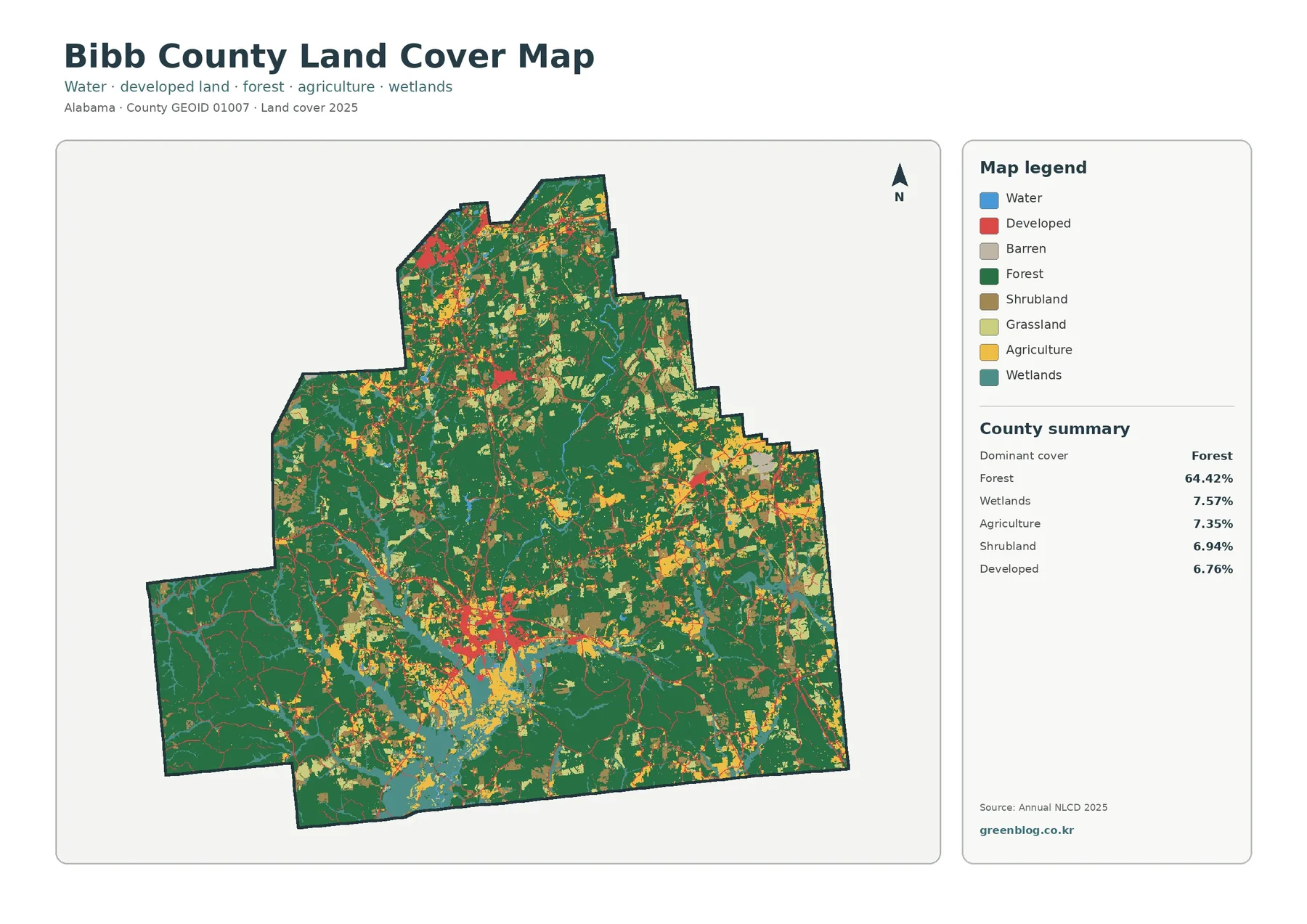

County land cover map
Land cover map showing the mapped cover pattern across County.

The general land-cover map is the most useful starting point for understanding what is actually on the ground. Forest appears green; agriculture is shown in yellow-toned areas; developed land appears red. Wetlands have a different color from open water, even where they lie next to each other. Reading the legend before drawing conclusions is especially important in a county where water-related cover threads through so much forest.

In the south-central portion, numerous red pixels sit near yellow and teal patches. That mixture is unlike the wide green areas farther west. A smaller red patch near the north and scattered built traces elsewhere suggest that developed land is clustered rather than spread evenly. Bright red is visually prominent, but its mapped share is still 6.76%. It would be misleading to estimate its actual area from how strongly the color stands out.

Wetland cover, at 7.57%, occupies almost the same countywide share as the agricultural class. Thin and branching teal shapes appear near many of the water-related features. Blue water occupies just 0.53% of the mapped area. A stream can look important on a map despite contributing little total surface area, while a wetland may extend much farther across adjacent land. The two classes should not be combined into one number.

The Cahaba River provides a meaningful local context for this pattern. The U.S. Fish and Wildlife Service identifies Cahaba River National Wildlife Refuge in Bibb County and describes protection of the river and nearby land. That does not mean every teal patch on the map lies inside the refuge or along that particular river. A detailed river network and the refuge’s boundary would be needed to identify specific locations.

A separate look at woods, farmland, and open vegetation

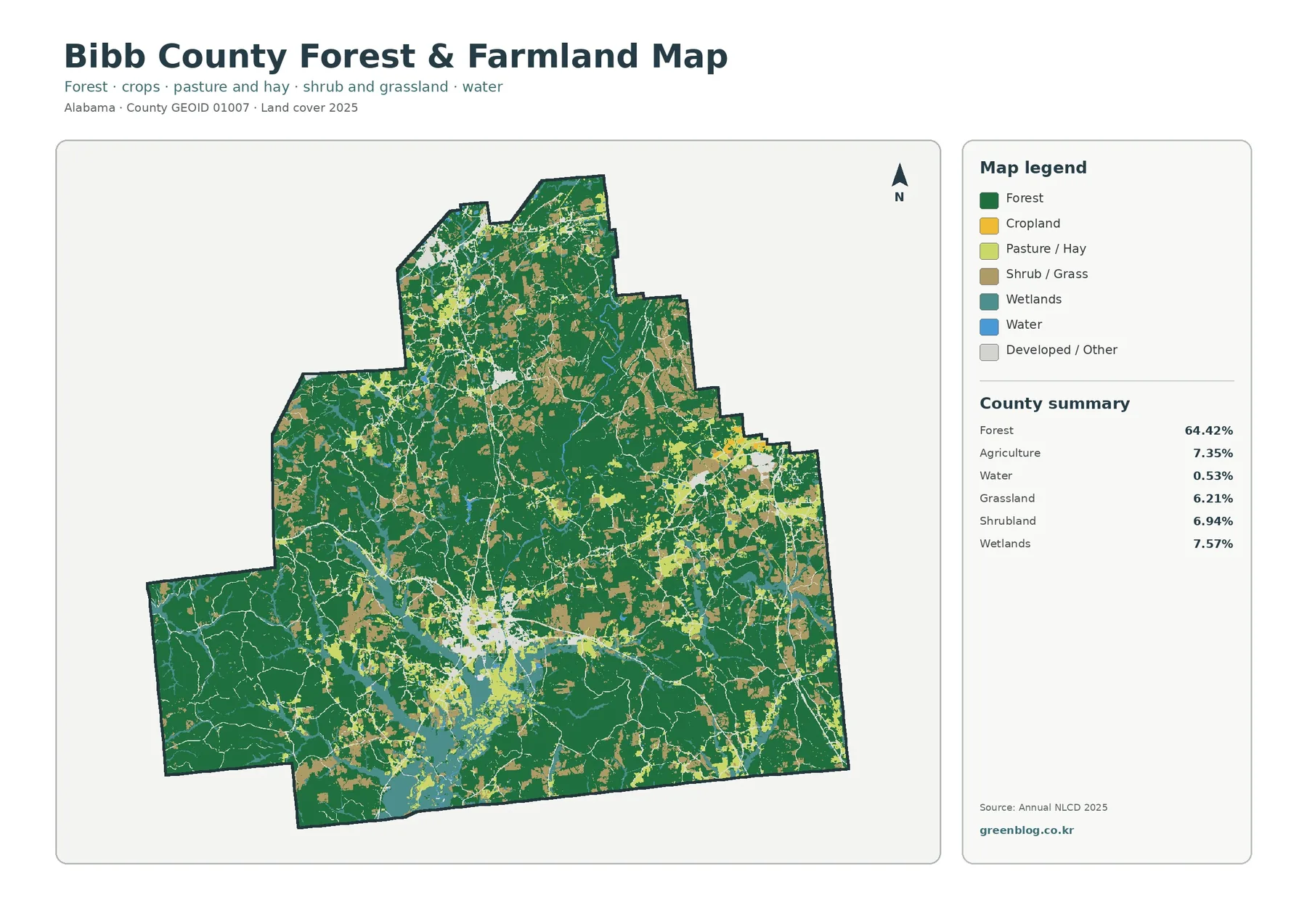

County forest and farmland map
Map comparing forest and farmland patterns across County.

The second image emphasizes a distinction that can get lost in the general map: wooded land versus the smaller pieces of agricultural and open vegetated land. In western Bibb County, the mapped forest extends across broad areas. Eastern and south-central sections contain more interruptions, where fields, pasture or hay, grass, and shrubland appear among wooded surroundings. These openings are not all the same type of land.

Agriculture occupies 7.35% of the county in the supplied summary. That is small relative to woodland, yet it can remain conspicuous because the patches are distributed across different sections. A reader who sees many yellow areas should still check the legend to distinguish cropland from pasture or hay, as well as nearby shrub and grass. Pale patches cannot automatically be counted as working farms.

Grassland is reported at 6.21%, with shrubland at 6.94%. Although their mapped shares are close, the classes describe different vegetation cover. Shrubs and grasses do not provide evidence of a particular crop or even active agricultural management. Neither map identifies individual landowners, livestock operations, forest stand ages, or which species are growing in a particular field. Those are questions for more detailed records.

For a county comparison, the position of the open patches may matter more than another decimal place in the forest percentage. Bibb County has a recognizable contrast between broad wooded portions and places where open classes are more fragmented. It makes the forest-and-farmland image useful for explaining why two locations in the same county can look very different on the ground.

Why developed land and pavement tell different stories

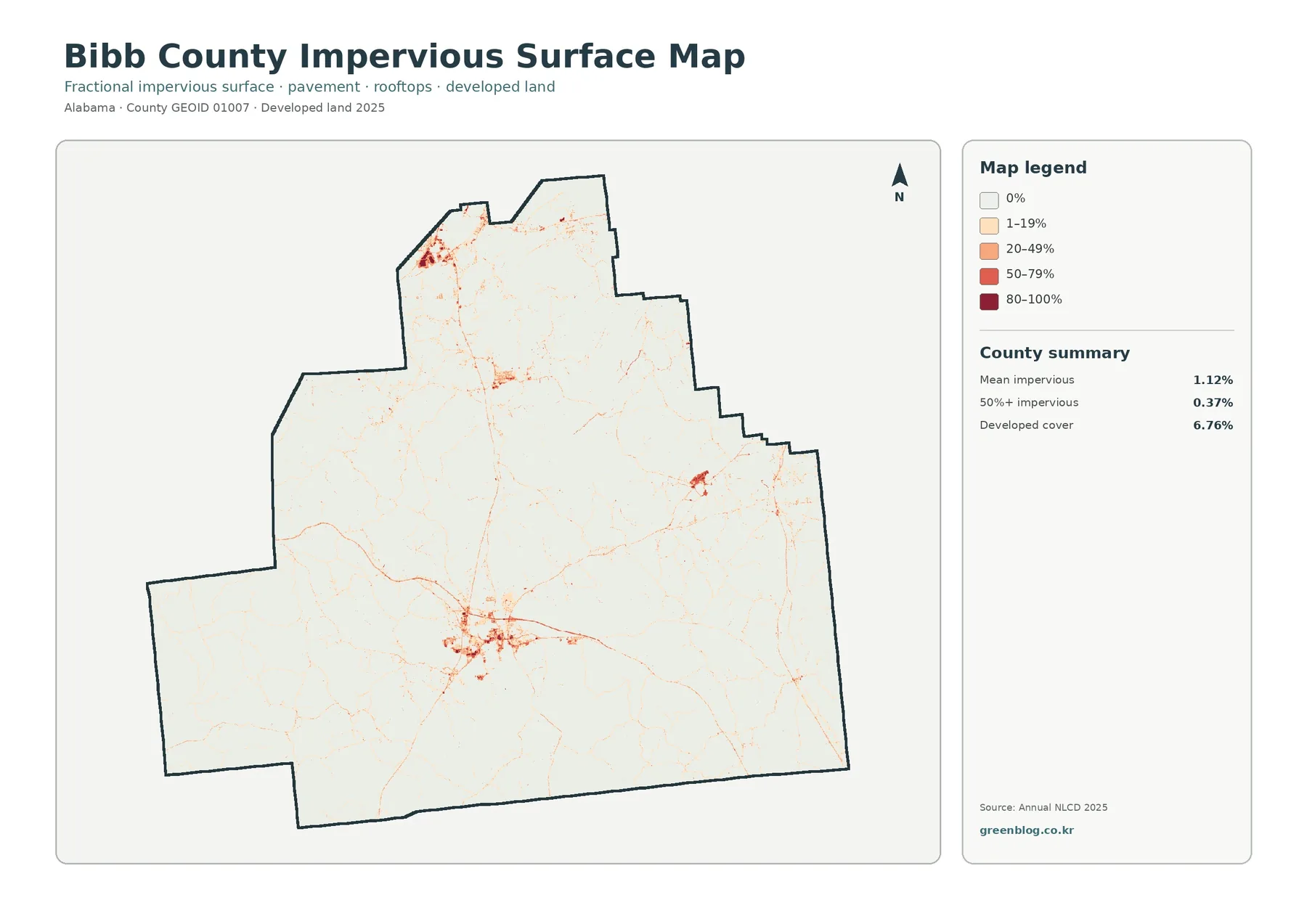

County impervious surface and developed land map
Map showing impervious surface and developed land patterns across County.

Impervious surfaces are roofs, pavement, parking lots, and other hard surfaces that rain cannot easily soak through. The county’s mean impervious value is just 1.12%. The summary also reports that 0.37% of the land is classified as at least 50% impervious. Much of the map is accordingly very pale. More saturated cells collect in the south-central developed area and appear in smaller concentrations near the north.

Thin orange lines are visible between some stronger clusters. Roads can be long and noticeable on an image while occupying relatively little land. The wooded sections that dominate the general map show only scattered hard-surface pixels here. Put beside the full-color map, this image illustrates the difference between an area used for settlement and the fraction of it covered by hard materials.

A developed-land share of 6.76% is not supposed to equal the mean impervious percentage. Developed classes can include homes surrounded by trees, lawns, and other surfaces that still absorb water. The impervious layer instead focuses on how much of a mapped cell is covered by pavement and rooftops. A low-density neighborhood may be developed without resembling a continuous parking lot.

This distinction is useful when introducing runoff or urban surface topics, but it does not establish flood risk by itself. A complete drainage analysis needs topography, soil, rainfall, culverts, and other information. Similarly, the map is not precise enough to measure the roof of an individual house. Think of the bright cells as starting points for closer investigation, not as survey measurements.

How much changed between 1985 and 2025?

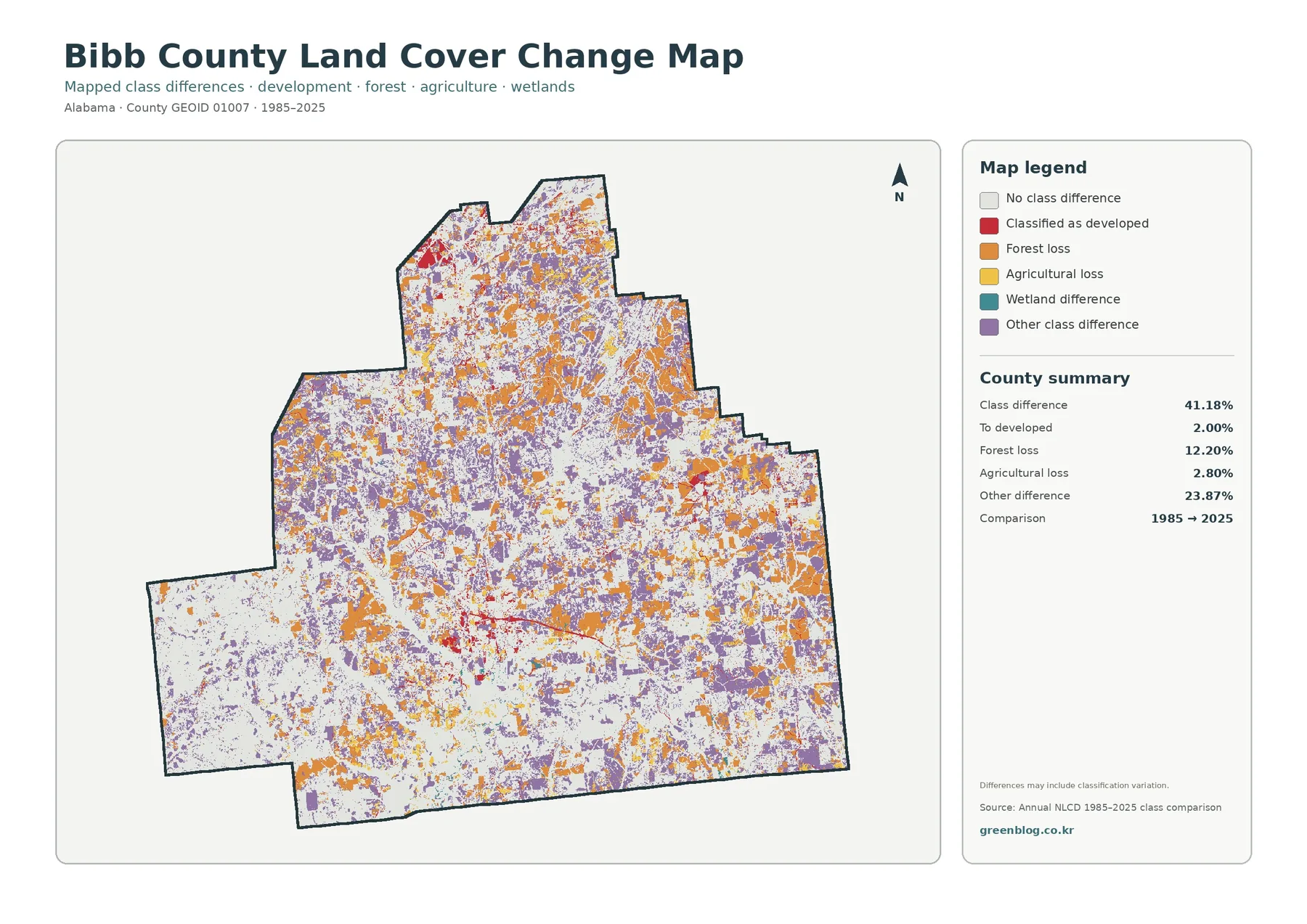

County land cover change map
Map showing the spatial pattern of mapped land cover change across County.

The change comparison reports a different mapped class in 41.18% of the county between 1985 and 2025. Its summary separates 2.00% classified as changed to developed, 12.20% labeled forest loss, 2.80% labeled agricultural loss, and 23.87% grouped as other class difference. The legend also includes wetland difference without a standalone percentage in the summary. That missing number should not be filled in by guesswork.

Orange and purple appear widely across the county, reaching areas far from the larger current developed cluster. Red changes to developed cover are much more limited and stand out near built concentrations, especially around the south-central area. Yellow agricultural-loss pixels are scattered rather than forming one dominant block. These distributions make it clear that a map of class difference is not simply a map of expanding towns.

A reported class difference is not necessarily a confirmed physical event. Changes in classification, image conditions, and how mixed pixels are assigned can influence a two-date comparison. Some forest-loss colors may represent real changes in vegetation, but a single endpoint map cannot reveal exactly when or why they occurred. Compare intermediate years, historical aerial imagery, or field records before attributing a specific patch to logging or construction.

Keep the two most important percentages separate: 41.18% reflects all mapped class differences, while 2.00% is the reported change-to-developed share. The first figure does not mean that more than two-fifths of Bibb County became urbanized. In fact, the largest listed component of the comparison is other class difference at 23.87%. Interpretation should start from the legend categories, not from a single headline number.

What the Cahaba corridor can—and cannot—tell us

The presence of a protected stretch of the Cahaba River gives Bibb County an environmental reference point worth exploring. On the land-cover images, teal wetlands and narrow blue water features occur among wooded areas. That pattern can guide a student toward questions about river valleys and riparian vegetation. It cannot substitute for the mapped boundaries of the refuge, nor does it prove the health of a particular river reach.

Someone comparing habitats may use the forest-and-farmland map to identify broad wooded surroundings and the general map to distinguish wetlands from dry open cover. The impervious image adds the location of more concentrated hard surfaces. A field study would still require species information, stream condition measurements, ownership permissions, and ground observations. Land cover answers the first geographical question—where different surfaces appear—not every ecological question.

Using the four JPG maps in a report or lesson

One effective presentation begins with the countywide 2025 map, so an audience can see why forest dominates the numerical summary. Follow with the farmland view to compare scattered open vegetation against the western wooded sections. Next, use the impervious layer to show how modest the hard-surface footprint is compared with the developed classification. Finish with the change map, emphasizing the distinct meanings of forest loss, change to developed, and other difference.

Keeping those four views together is useful when a document needs to explain both current conditions and the limitations of long-term comparison. The ZIP provides the original four JPG files, not newly enlarged versions. Use the source dimensions for your document and check that the legend remains readable after resizing. When comparing other counties, keep the north arrow and the map scale in view rather than treating all printed maps as if they share the same scale.

The downloadable map set is best suited to county-level reference, not parcel-level decisions. It can support an educational poster, an overview of built clusters, or a visual introduction to a watershed question. It cannot identify permitted land uses or demonstrate that a property is suitable for building. For those tasks, local zoning, parcel records, current surveys, and applicable official guidance are necessary.

Accuracy notes before interpreting an individual pixel

Annual NLCD-style land-cover data use a raster grid, commonly with 30-meter cells. A single cell may contain a narrow road, a portion of a field, and some tree canopy. Assigning a representative class simplifies what is actually a mixed surface. That is a reasonable approach for countywide patterns, but it can make small features and boundaries look more definite than they are.

The supplied current land-cover images describe 2025 conditions, not the present state of every site indefinitely. A new road, timber harvest, or wetland alteration after that reference date would not appear automatically. Likewise, a comparison of 1985 and 2025 does not document the sequence of events between those endpoints. If a particular location matters, check recent imagery and available intermediate datasets.

Land cover should also be distinguished from land use and legal zoning. A forest pixel may be on private property; a developed pixel may include open lawns; an agricultural pixel does not disclose the owner or the crops produced. These distinctions are especially important in Bibb County, where modest developed clusters sit among large wooded areas and some landscapes have more than one kind of cover nearby.

Questions people ask about these Bibb County maps

Does a 64.42% forest share mean all that woodland is protected?

No. The forest share describes mapped surface cover, not ownership or legal protection. Cahaba River National Wildlife Refuge is an identified protected area, but the rest of the green pixels cannot be assumed to be part of it. Property and conservation boundaries must be checked separately.

Where should I look for farmland among the trees?

The forest-and-farmland map has useful patches of open cover in the east and parts of the south-central county. Check its legend carefully: agriculture, pasture or hay, shrubland, and grassland are not interchangeable. Small open areas also occur outside the largest clusters.

Did land cover really change across 41.18% of the county?

The figure reports a change in mapped class between the two stated years. It includes several change categories and can reflect classification variation. It is not the amount developed, nor is it proof of a particular physical cause at every changed cell.

Frequently Asked Questions

Does 64.42% forest mean most of Bibb County is one continuous forest?

No. Forest is the largest single class, but wetlands, agriculture, shrubland, grassland, developed cover, and water repeatedly interrupt it. The map contains some broad forest blocks, especially in the west and southwest, while other parts of the county show a finer mixture. The percentage also says nothing about tree species, stand age, ownership, or management.

Why is developed cover 6.76% while mean impervious surface is only 1.12%?

Developed land is a broader land-cover class. A developed neighborhood can contain roofs and pavement but also lawns, trees, and other permeable ground. Fractional impervious surface estimates the hard portion more directly. Low-density development can therefore contribute to the developed class without producing a high countywide impervious average.

Does the 41.18% class-difference value mean 41.18% of the county was developed?

No. The 41.18% figure combines multiple kinds of differences between 1985 and 2025. Only 2.00% is labeled as changing to developed. The summary also includes 12.20% forest loss, 2.80% agricultural loss, and 23.87% other class difference, while the legend separately includes wetland difference. Classification variation may contribute to some mapped changes, so causes should be verified with additional evidence.

Map File Information

Download one ZIP archive containing the four original land-cover map JPG files.

  • Included Files: Four original land-cover map JPG files
  • File Type: ZIP archive containing four JPG files
  • Intended Use: Map comparison, learning, and print reference
Download Map Files

Sources and map interpretation notes

Area shares and class-change figures come from the legends printed on the four supplied Bibb County images. The official links below provide context for land-cover classes, county geography, and the Cahaba River setting. The references are useful for checking definitions rather than treating the map alone as a legal or field survey.

Green Map creates custom-edited map images using open geographic data sources such as geoBoundaries, Natural Earth, OpenStreetMap, and government open data. These maps are edited visual materials, not raw data files, and are provided for education, documents, presentations, and graphic reference.
