Buffalo County in central Nebraska is easiest to read from Kearney, where the county’s largest urban area sits just north of the broad Platte River valley. U.S. 30 runs east and west through the southern half, linking Kearney with Gibbon and Shelton to the east and with Odessa and Elm Creek to the west. Farther north, the South Loup River crosses a more rolling landscape, while the western side rises into noticeably higher and more dissected terrain. High-resolution map files are available for download in the section below.
This page follows the county boundary and road network, the distribution of six major communities, the Platte, South Loup, and Wood river systems, and the county’s elevation pattern. The original high-resolution JPG versions of the supplied maps are also available together in a ZIP for printing, classroom use, or personal reference.
Table of Contents
Kearney sits between the Platte lowlands and the hillier interior
Kearney is the Buffalo County seat and the clearest place to begin. The county’s official Facts page identifies Kearney as the county seat and lists a broad group of communities that includes Gibbon, Ravenna, Elm Creek, Pleasanton, and Shelton. On the supplied map, Kearney has by far the largest developed footprint and occupies the southern-central part of the county close to the Platte River plain.
Sherman and Custer Counties lie to the north, Hall and Adams Counties are east, Dawson and Kearney Counties are west, and Phelps County touches the southwest. Buffalo County extends a long distance east to west, but the physical landscape is not uniform. The southern edge is broad and low, while the west and northwest contain higher ridges cut by many short valleys.

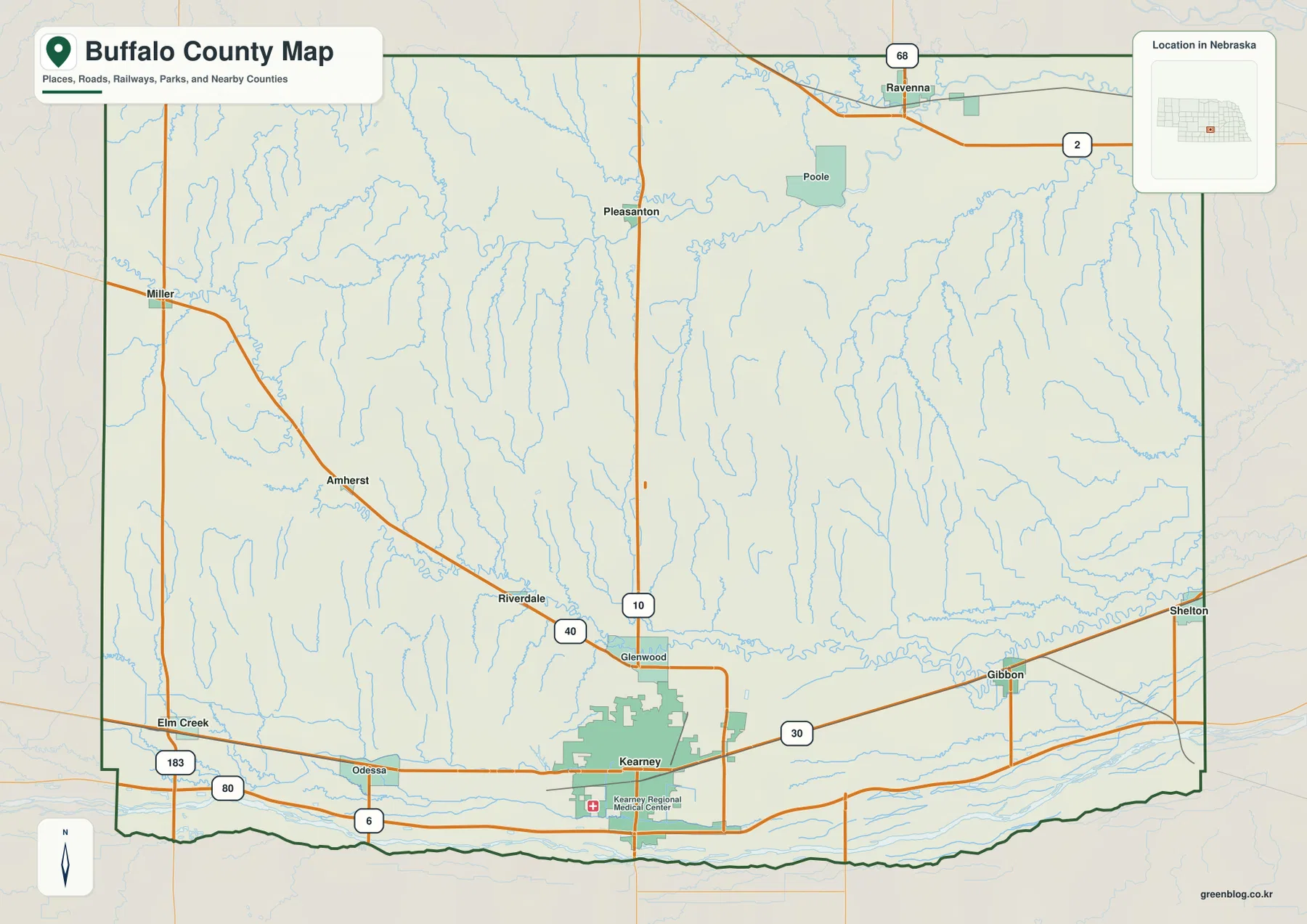

U.S. 30 connects Kearney with Gibbon, Shelton, and the western towns
U.S. 30 provides the simplest east-west reference on the county map. It passes through Kearney, continues east toward Gibbon and Shelton, and reaches west toward Odessa and Elm Creek. Interstate 80 occupies the lower Platte River corridor near the southern edge, creating another major east-west route across the county.
U.S. 183 appears near Elm Creek on the western side, while the road marked 10 runs north through the Pleasanton area. Ravenna in the northeast is connected with routes marked 68 and 2. Smaller places such as Riverdale, Glenwood, Amherst, Miller, and Poole help fill in the rural network between the larger communities.
The road pattern changes with the terrain. Routes near the Platte valley are often long and relatively direct, while roads farther north and west cross a more dissected landscape of ridges and stream valleys. The map works well for overall orientation, but current construction, closures, road surfaces, and driving times should be checked with live transportation information.

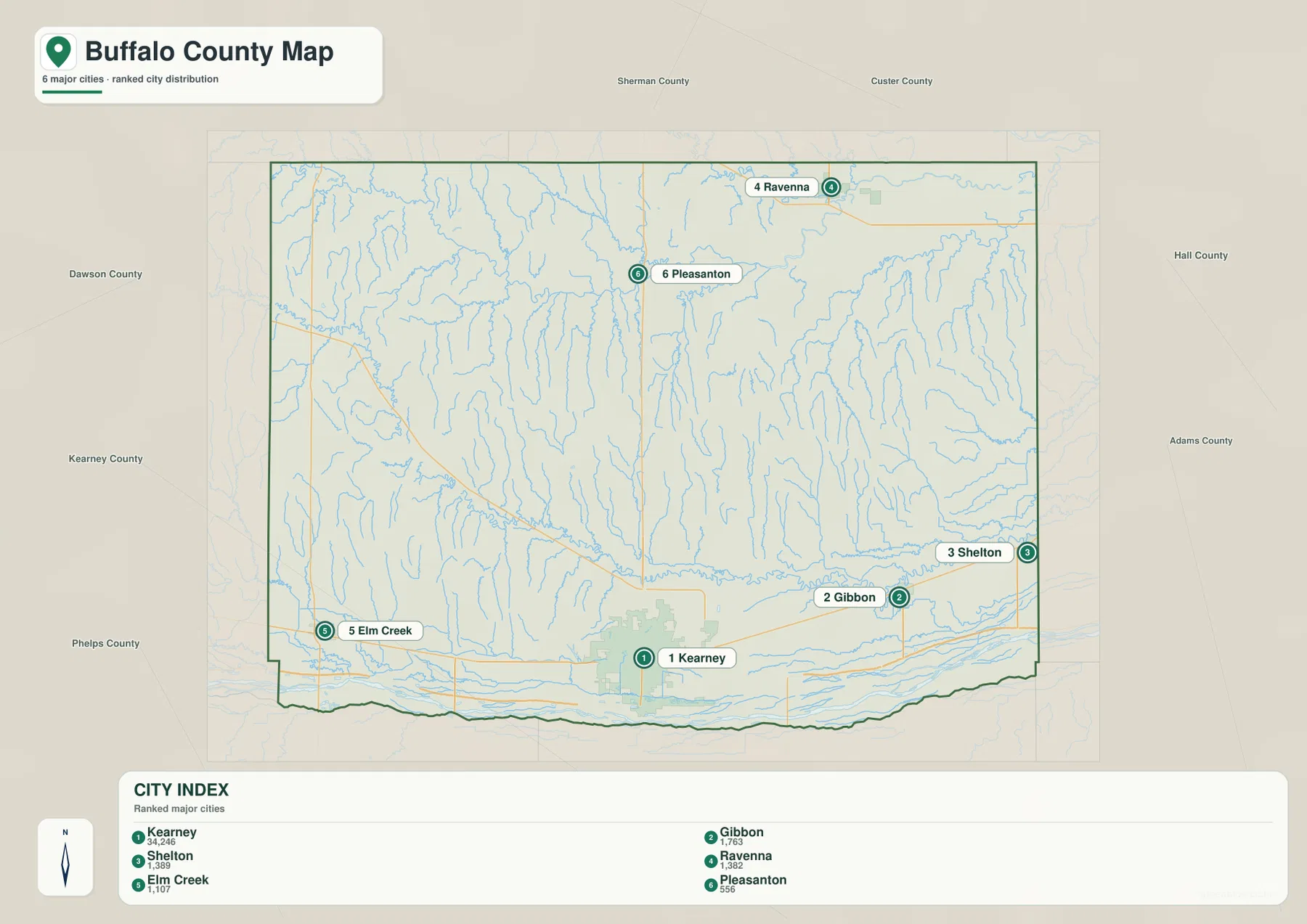

Six ranked communities stretch from Elm Creek to Shelton and Ravenna
The city distribution map ranks Kearney first, followed by Gibbon, Shelton, Ravenna, Elm Creek, and Pleasanton. Kearney is south-central, Gibbon and Shelton lie to the east, Elm Creek is west, and Ravenna and Pleasanton sit in the northern half. The six markers make the county’s dispersed settlement pattern easy to see without the extra detail of every local road.
No straight-line connectors or mileage labels appear between the cities on the supplied map. That means the useful comparison is their relative position rather than a distance value added from outside the graphic. The road map is the better choice when the practical route between two communities matters.
Buffalo County’s official Facts page lists Kearney as the county seat and provides 2020 population figures for communities across the county. The city map selects only six major places, so it should be understood as a ranked visual summary rather than a complete administrative inventory of every village and settlement.

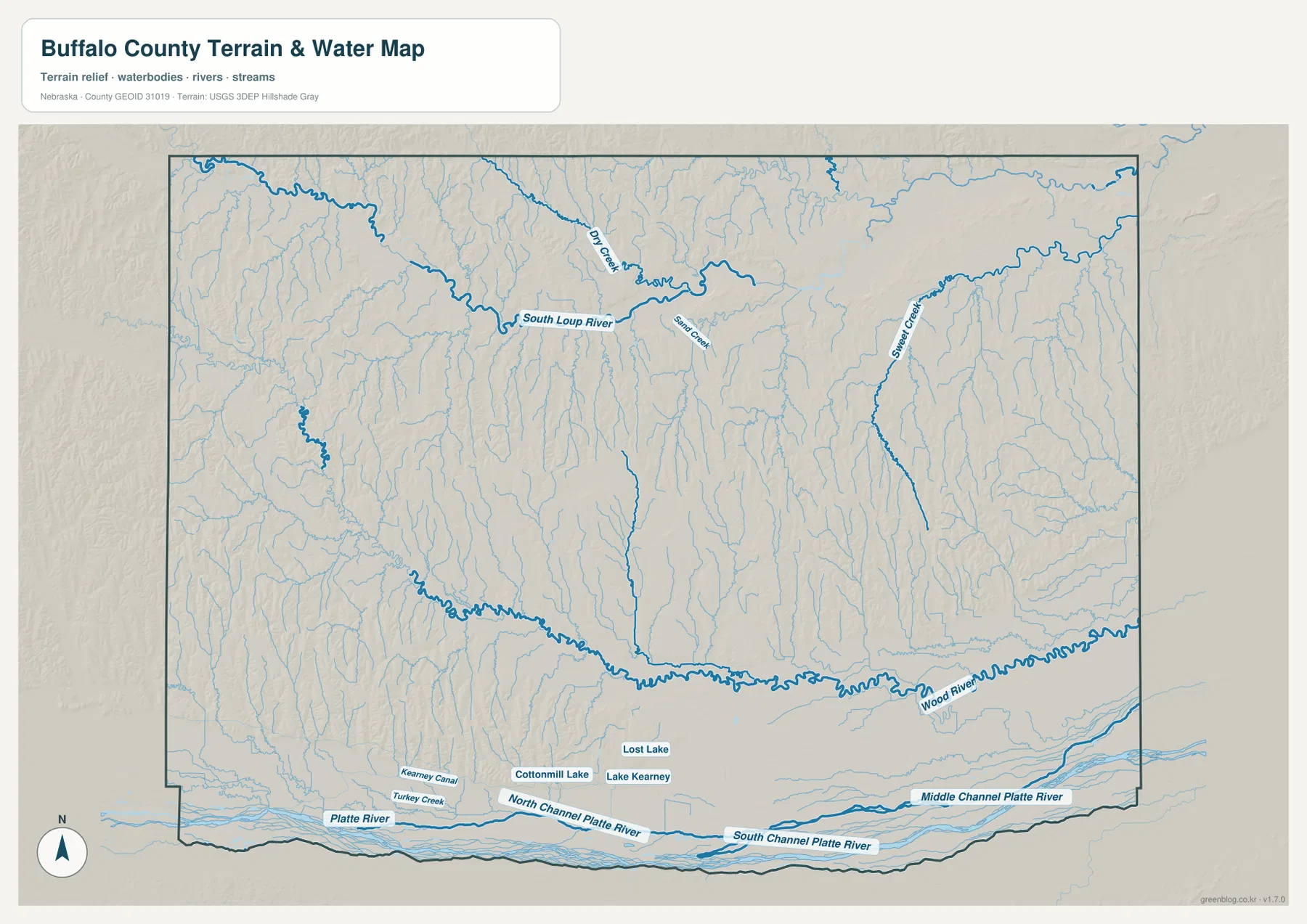

The Platte River splits into multiple channels along the southern edge
The southern water network is the most visually complex part of the map. The Platte River follows the county’s lower edge, accompanied by the North Channel Platte River, South Channel Platte River, and the Middle Channel Platte River farther east. Kearney sits immediately north of this broad braided-river landscape, which helps explain the flat terrain and dense transportation network around the city.
Kearney Canal and Turkey Creek appear near the urban area, while Cottonmill Lake, Lake Kearney, and Lost Lake provide several named standing-water features. These are much smaller than the Platte River system, but they are useful local landmarks when reading the southern part of the map.
In the north, the South Loup River enters from the west, bends through a broad valley, and continues eastward. Mud Creek descends from the north, and smaller tributaries such as Sand Creek join the surrounding drainage. Sweetwater Creek is prominent farther east and occupies another long valley through the northeastern interior.
Wood River crosses the lower-middle part of the county from west to east. Numerous short tributaries descend from the higher country to the north and feed this corridor before the river continues toward the eastern side. The water map is intended for geographic reference and should not be used as a flood, parcel, water-right, depth, or navigation product.

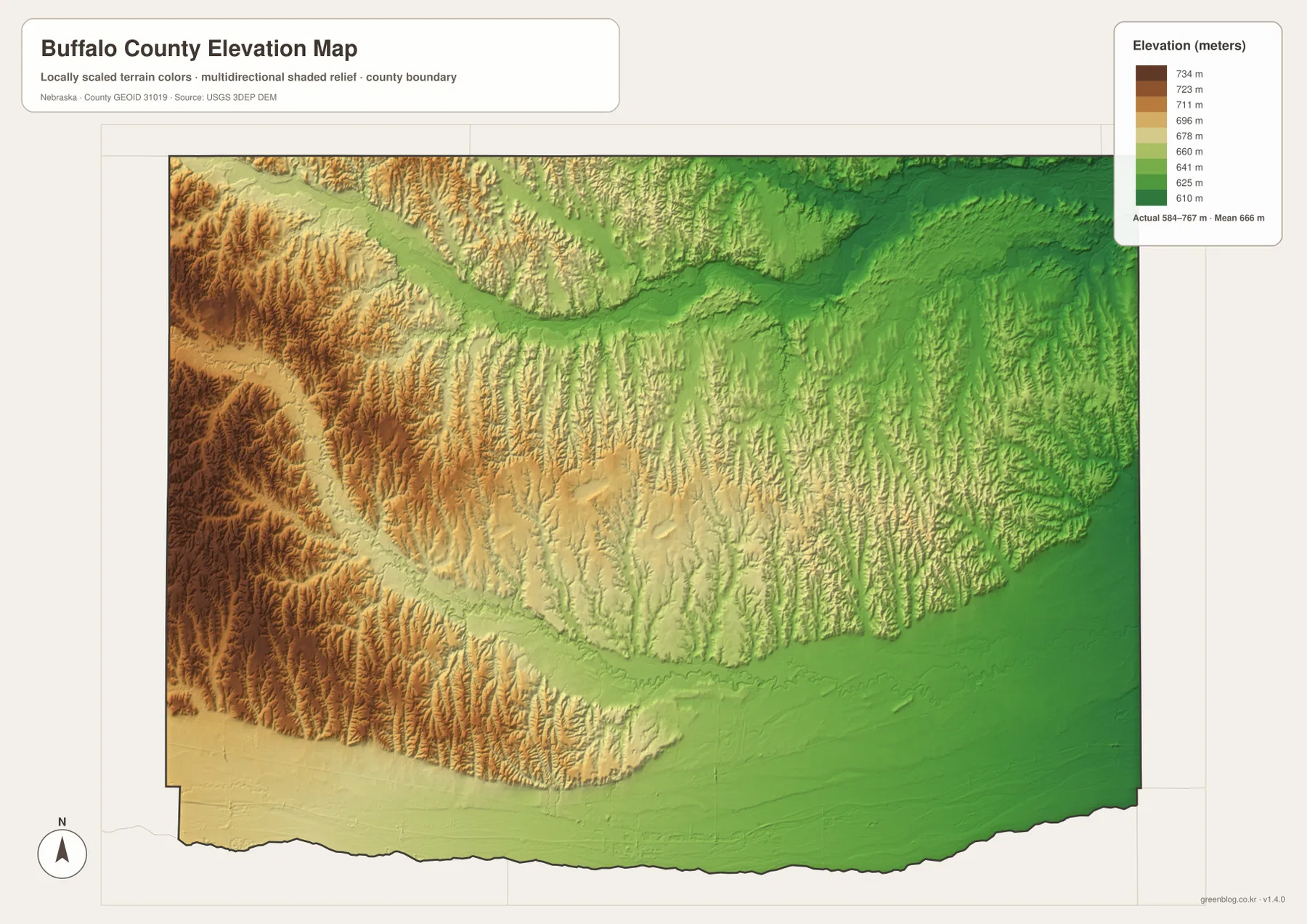

Elevation ranges from about 584 to 767 meters
The elevation map reports an actual county-wide range of approximately 584 to 767 meters, with a mean near 666 meters. The lowest greens dominate the Platte River plain across the south and extend into the eastern side. Kearney, Gibbon, and Shelton all sit close to this broad lowland.
Elevation rises toward the west and northwest, where yellow and brown ridges are cut by closely spaced small valleys. The north-central interior is also noticeably rougher than the southern plain. The total elevation difference is less than 200 meters, but the repeated ridges and gullies give the western half a much more textured appearance.
The South Loup River forms a lower green corridor through the northern uplands, while Wood River follows another low route across the center-south. Comparing the water and elevation maps makes these relationships clear: the larger streams consistently occupy the lower parts of the terrain.
The colors are scaled locally for Buffalo County and should be used to compare places within this map. Similar shades on another county map may represent different absolute elevations. The generalized surface is not survey-grade data for engineering, construction, drainage design, or property work.
Railroads and the Platte corridor helped make Kearney the county center
Buffalo County’s official historical information describes rapid development after railroads reached the area in the 1860s and identifies Kearney as a railroad station that grew into the county seat. The county’s Register of Deeds history notes that the first courthouse was built at Gibbon in 1873 and that county records were later moved to Kearney.
The modern map still reflects that transportation geography. Kearney lies near U.S. 30, Interstate 80, major rail lines, and the Platte River lowland, where flatter ground supports a dense network of roads and development. The higher, more dissected country to the north and west is much less urbanized.
South Loup and Wood River provide two useful inland reference lines
The South Loup River is the easiest way to organize the northern half of the county. Ravenna and Pleasanton lie close to this broader northern region, while Riverdale, Glenwood, Amherst, and other small places occupy the hillier country farther south and west. The river valley creates a clear break in the otherwise heavily dissected uplands.
Wood River forms another long reference across the middle-lower part of Buffalo County and continues toward Gibbon and Shelton. Together with the Platte River to the south and South Loup River to the north, it gives the county three strong east-west geographic lines that make the road and elevation maps easier to understand.
Choosing the right Buffalo County map
For basic orientation, begin with Kearney and U.S. 30, then follow the route east toward Gibbon and Shelton or west toward Elm Creek. Ravenna and Pleasanton provide northern reference points. The city map simplifies the same settlement pattern when the goal is to compare the main communities without minor roads.
For physical geography, start with the Platte River channels in the south, move north to Wood River, and then trace the South Loup River across the upper part of the county. The elevation map shows why the southern corridor is broad and low while the west and northwest contain more rugged ridges and valleys.
For printing or classroom display, the downloadable high-resolution JPG files preserve more road labels and stream names than the web previews. The county map emphasizes roads and boundaries, the city map summarizes major settlements, the water map highlights river systems and local lakes, and the elevation map shows the contrast between the Platte plain and the higher western interior.
Frequently Asked Questions
Does the city map show distances from Kearney to the other communities?
No. The supplied city map ranks and locates Kearney, Gibbon, Shelton, Ravenna, Elm Creek, and Pleasanton, but it does not include connector lines or mileage. Use the general road map for relative position and a current routing service when actual driving distance is needed.
Where is the lowest terrain in Buffalo County?
The broad Platte River corridor along the south and the eastern lowlands are the lowest areas. The county-wide range is about 584 to 767 meters, while higher terrain becomes more common toward the west and northwest. South Loup and Wood River valleys also appear lower than the surrounding hills.
Can the Platte River map be used for flood or property decisions?
No. It is a geographic reference showing the Platte River channels, South Loup River, Wood River, creeks, canals, and lakes. Flood risk, water rights, parcel boundaries, channel conditions, and access questions require current authoritative records.
Map File Information
The ZIP contains the original high-resolution JPG files for the Buffalo County boundary and road map, city distribution map, terrain and water map, and elevation map.
- Included Files: Use only the versions confirmed in the article and supplied images
- File Type: Use the confirmed download contents
- Intended Use: Printing, education, presentations, and map-based projects
